PICKUP ROLL TOP SLIMLINE II LOAD BED RACK KIT / 1425(W) X 1156(L) - BY FRONT RUNNER

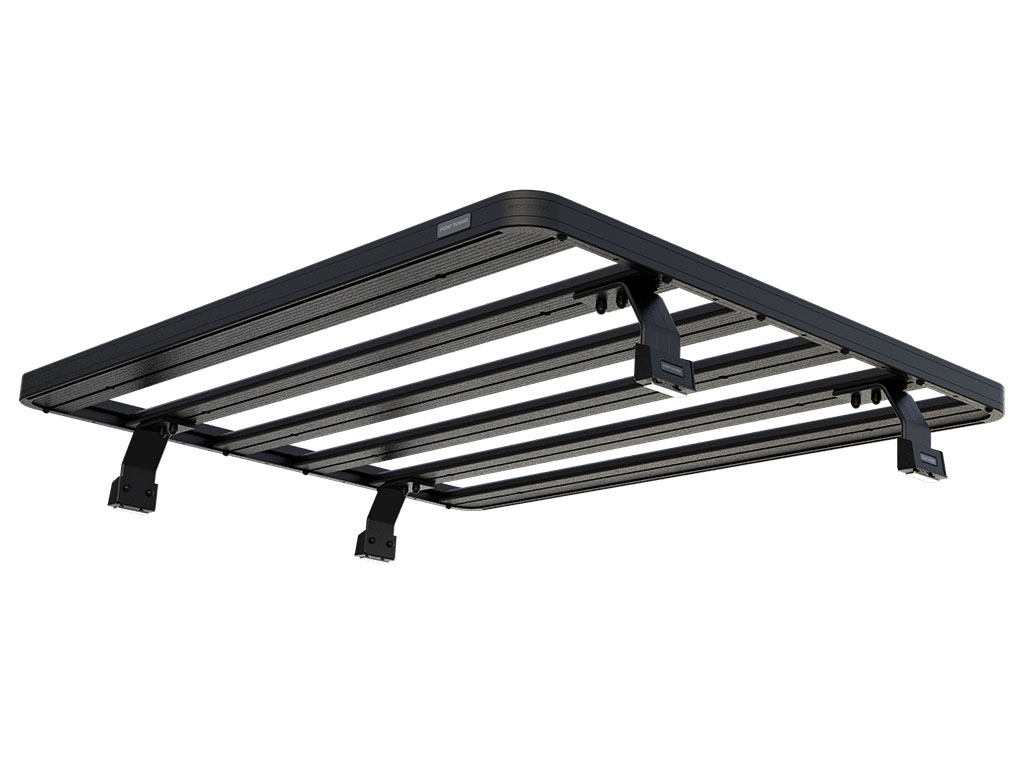

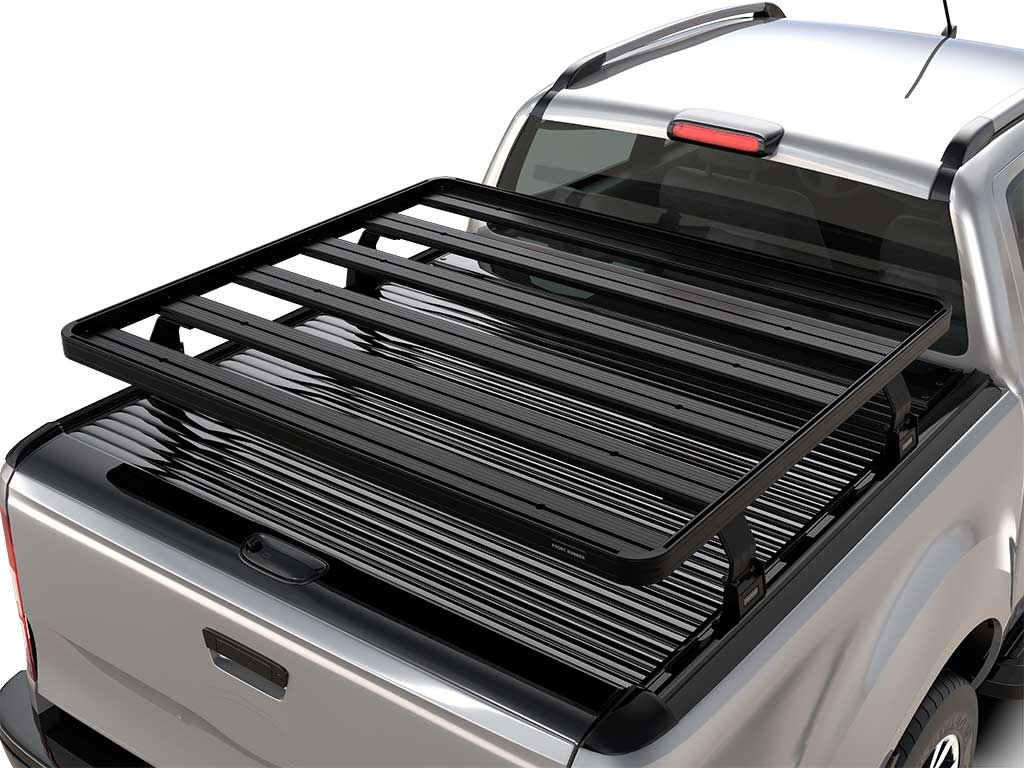

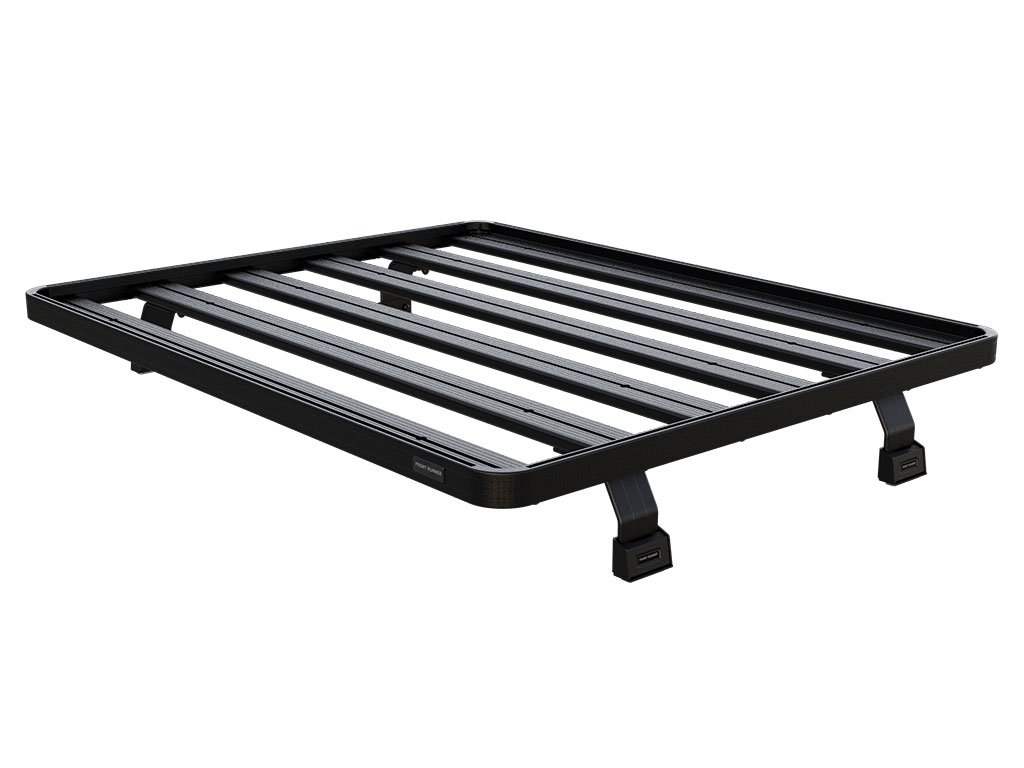

This kit creates a full-size rack that sits above your Pickup Truck's load bed when fitted with a Roll Top Cover. This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1156mm) and 4 Pickup Roll Top Leg Mounts that fit into the existing factory/OEM tracks in your Roll Top Cover.

Description Technique

KRRT015T - Pickup Roll Top Slimline II Load Bed Rack Kit / 1425(W) x 1156(L) - by Front Runner
Consisting of:

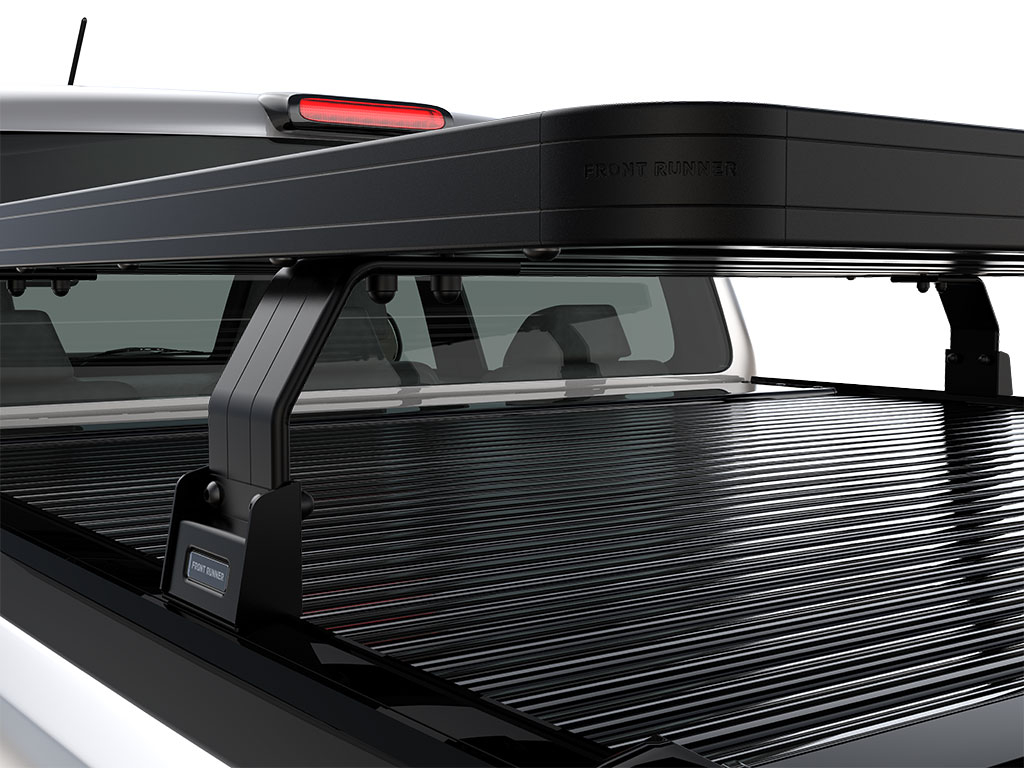

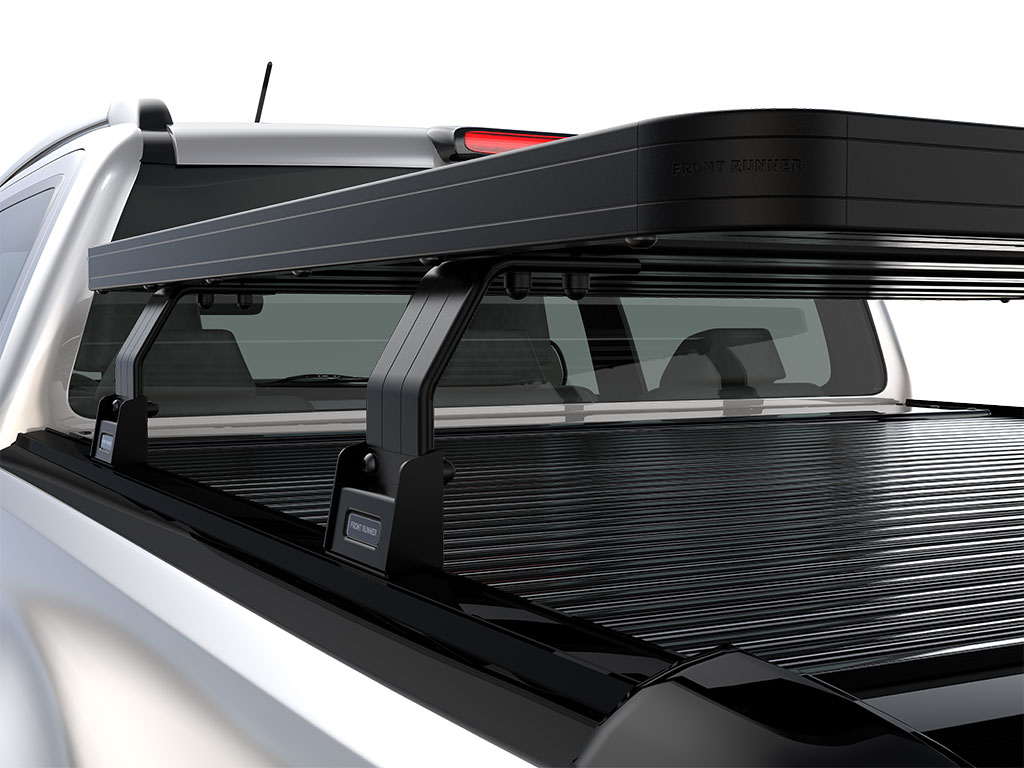

2 x LASS028 - Pickup Roll Top Leg Mount - by Front Runner 1 x RRSTJ06 - Slimline II Tray - 1425mm(W) x 1156mm(L) - by Front Runner

Material used:
Black epoxy powder-coated T6 aluminium 3CR12 Stainless Steel
Approximate Installed Weight 22kg (49lbs)

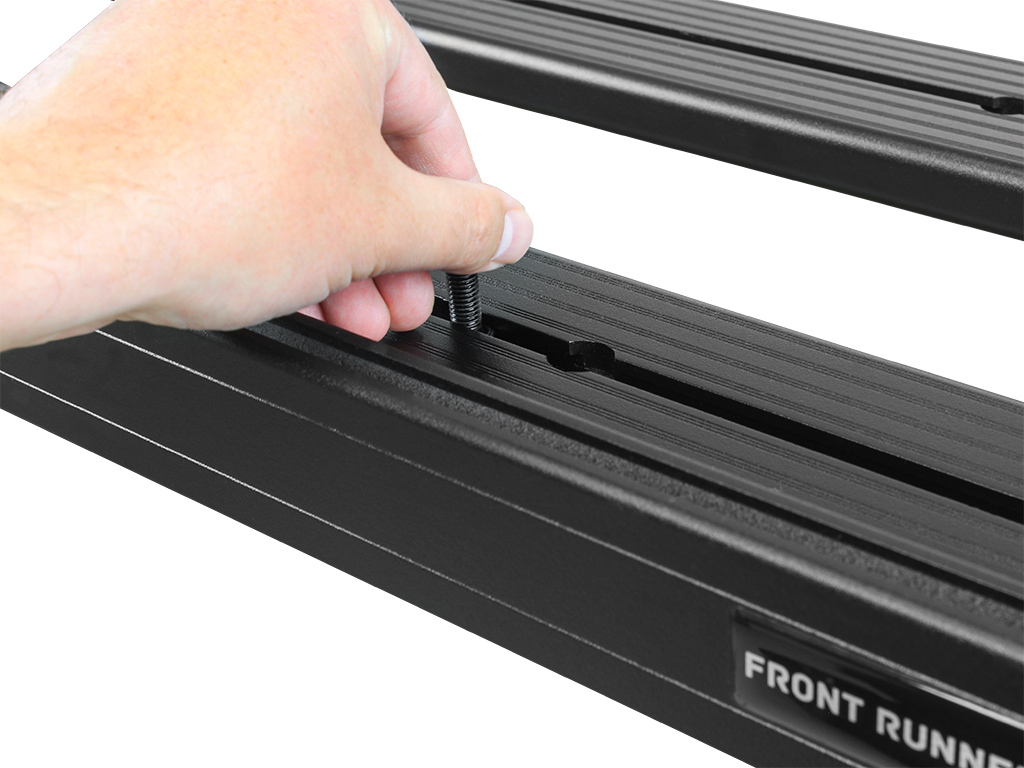

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle's roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width 455mm (18'')Length 1610mm (63'')Height 240mm (9'')

Shipping Weight:
Weight 25.9kg (57.0lbs)
